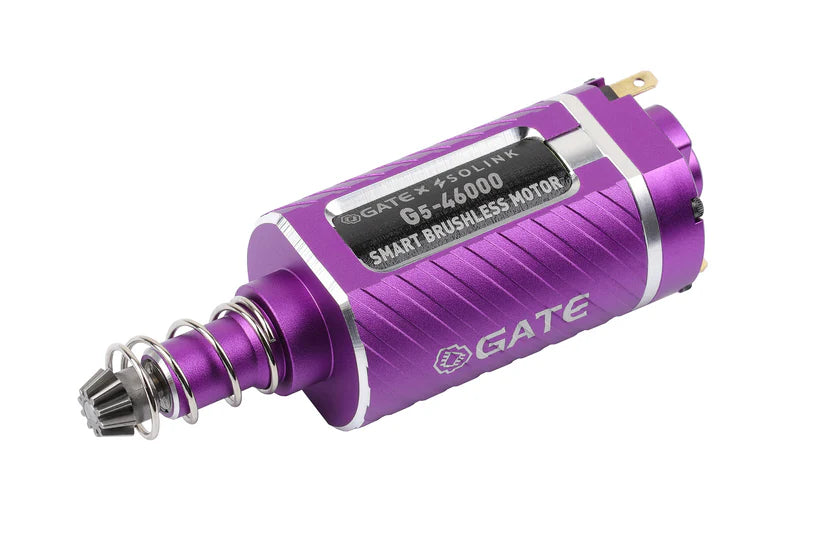

G5 Brushless Motor from Gate in Purple

GATE G5 Smart Brushless Motor - Long Type

by Gate
SKU SBM-G5
€214.99 - €214.99
€214.99
€214.99 - €214.99
€214.99
  • The GATE G5 Smart Brushless Motor is compatible with all standard V2 gearboxes and is a top of the range upgrade component.
  • The first brushless motor programmable via the GCS mobile app exclusively with GATE TITAN II or ASTER II Bluetooth®.
  • Integrated anti-reversal mechanism ensures quieter operation and ultra-precise pre-cocking.
  • Extremely high torque, reaching up to 2334 g-cm.
  • Very wide RPM range: 10,000 - 46,000 RPM.
  • Highly durable motor connectors.
  • Integrated motor shaft manufactured using CNC technology.
  • Exceptionally effective braking system.
  • D-type pinion gear.
  • Thanks to the GCS app you get precise adjustment of speed ranging from 10k to 46k.
  • Torque adjustment gives you the ability to adjust torque to your gearbox configuration.
  • Soft Start extends the life of the gearbox’s internal parts, including the gears, meanwhile, Fast Start gives you the quickest possible trigger reaction.
  • You can change settings even during gameplay, without an additional programmer.
  • What's also unique is that the motor has a built-in anti-reversal mechanism, significantly improving the gearbox's performance.
  • Say goodbye to the problematic standard anti-reversal latches and enjoy quieter operation and even more accurate pre-cocking adjustments.
  • The motor's extremely fast startup ensures an instantaneous trigger response, while its high efficiency reduces battery consumption and motor temperature.
  • High torque enables compatibility with the most demanding replica configurations, and the adjustable rotational speed ensures perfect adaptation to almost any gearbox configuration.
  • Weight: 141g
  • Dimensions: 88.5mm x 29.5mm x 25mm (L X W X H).
  • Supply Voltage range: 6 - 16.8v
  • GATE G5 Smart Brushless Motor is compatible with all standard V2 gearboxes
  • ETUs - smart functions
  • TITAN II Bluetooth
  • ASTER II Bluetooth
  • ETUs - standard use
  • ASTER SE for V2
  • ASTER SX for V2
  • TITAN V2 (1st generation)
  • Other brand V2 ETUs
