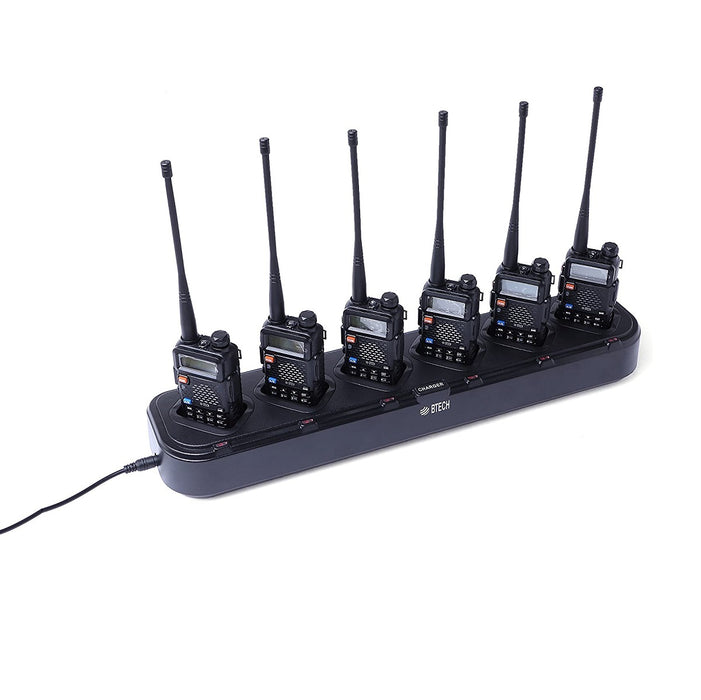

BTech CH-5-6 Gang/Multi Battery Charger

by Baofeng
  • The CH-5-6 is an intelligent, multi-position battery charger for the the UV-5R Series of hand-held radios (UV-5R, BF-F8HP, UV-5X3, UV-5RA, and others using the BL-5 (or BL-5L) battery).

  • They are capable of charging up to six, single-cell lithium-ion (Li-ion) batteries; six, dual-cell lithium-ion batteries; or six, six-cell, nickel metal hydride (Ni-MH) batteries simultaneously.

  • Perfect for Airsoft Teams, Airsoft Sites or anyone who has multiple BL-5 compatible Radios.
  • Charge batteries attached to the radio or charge batteries solo (without the radio)
  • The CH-5-6 have features that effectively protect the batteries and prolong the battery life. The CH-5-6 has six, independent intelligent charge-management circuits, one for each battery-charging position.
  • They detect a battery’s charge state, provide the appropriate voltage and current while charging, and turn off when the battery is fully charged.
  • In addition, it includes reverse-polarization protection circuitry to prevent damage to the battery or the charger should a battery be inserted incorrectly. A charge status indicator for each position allows a user to quickly determine if a battery is fully charged and ready to use.
  • Instructions
  • 1.Plug the DC output plug the AC adapter into the CH-5-6 desktop multi-charger.
  • 2.Plug the AC adapter into an AC outlet.
  • 3.Insert a radio, with the battery attached, or the battery alone, into one of the charging positions, making sure that the battery makes good contact with the charging terminals.
  • Specifications
  • AC/DC Adapter:
  • 1.Input Voltage: 100-240 VAC, 50/60Hz
  • 2.Output Voltage: 12 VDC @ 5A
  • Charging tray
  • 1.Input: 12 VDC
  • 2.Output: 4.2 VDC, 8.4 VDC, or 9.4 V DC

A European 2 Pin to UK 3 Pin Plug Adapter is required.
